| External length: | 3700 mm |
| External width: | 2500 mm |
| Total height: | ~3000 mm |

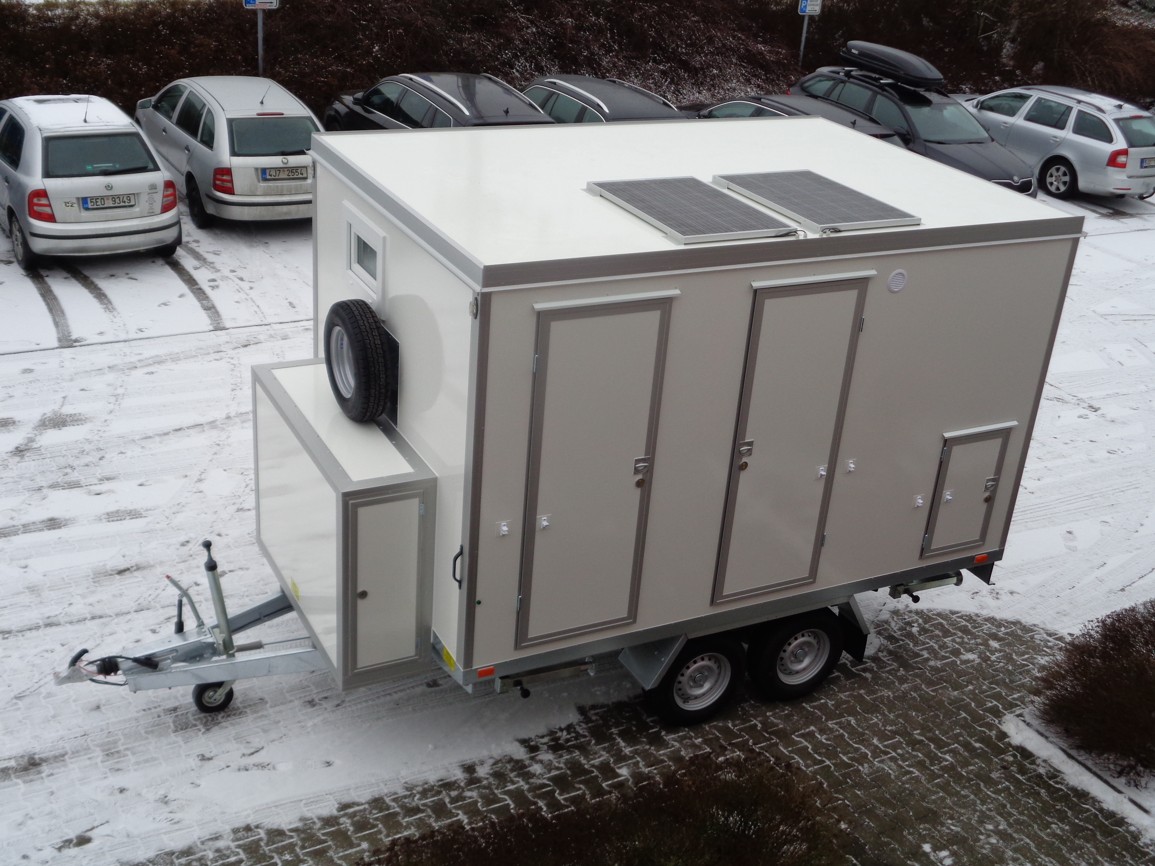

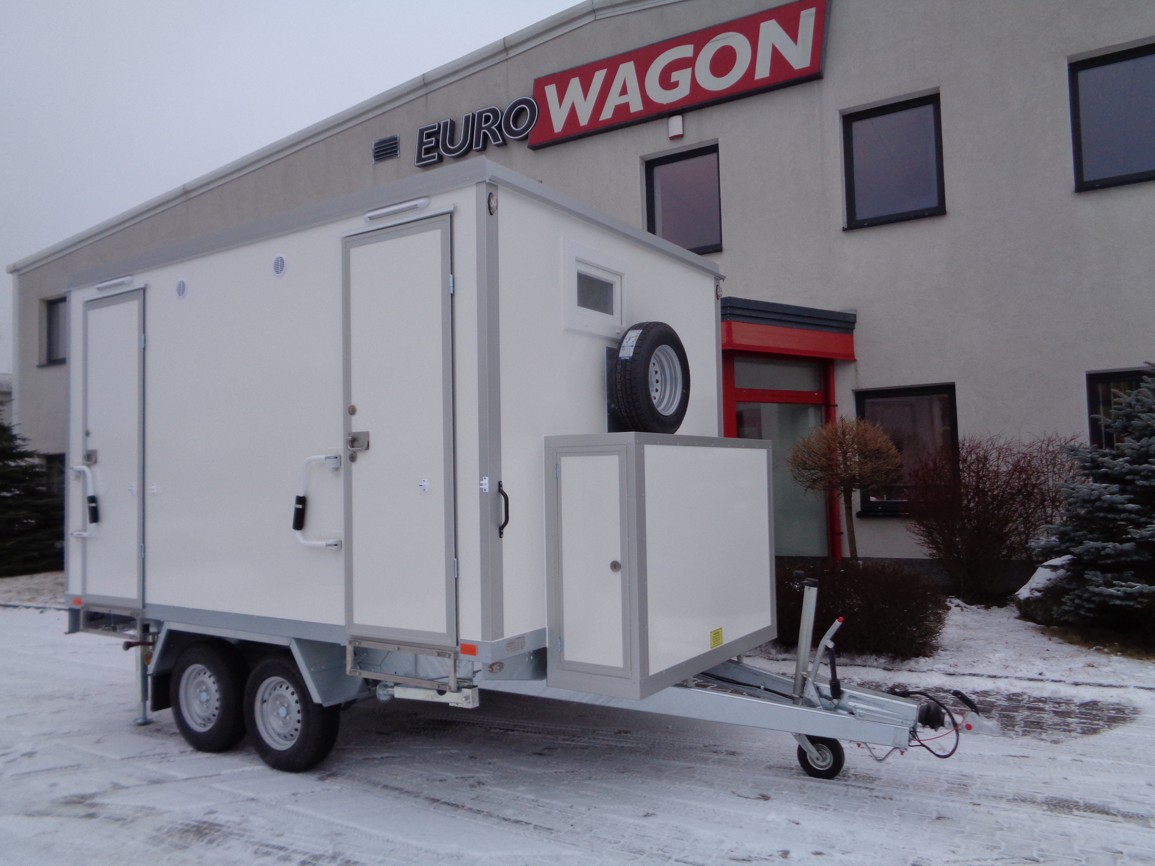

Toilet trailer type 3883-37-2

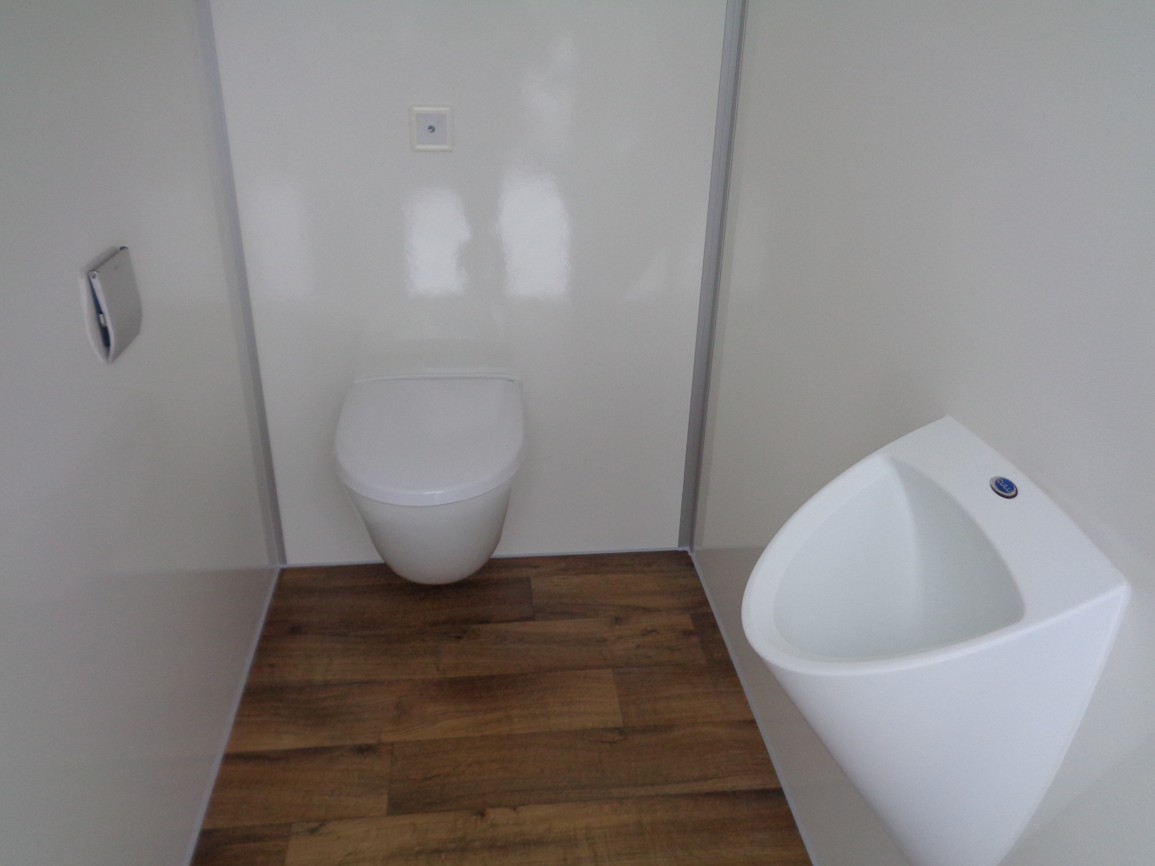

2x VIP WC + urinal
- spaceous cabins separately for WOMEN x MEN
- Vacuum toilets with unique JETS flushing system
- Vacuum water pump JETS ULTIMA C200 DC
- Fresh water (420 l) and waste water (1000 l) tanks + water level detector + water pump Shurflo 12V - 14 l/min
- solar system connected with an independent source of energy - battery Banner 12 V/230 Ah
230 V - 16 A electric connection
| Total weight | 3500 Kg |
| Tare weight | ~1800 Kg |
| Number of axels | 2 |
| Wheels | 185 R 14C |
| Braked trailer | Yes |
| Chassis | galvanized, support wheel, 4 pcs support legs |
| Floor | sandwich panel 60 mm + PVC linoleum 2 mm (both sided galvanized sheet metal) |
| Wall | sandwich panel 50 mm (both sided glass fibre 1,5 mm) |
| Roof | sandwich 60 mm (both sided glass fibre 1,5 mm) |
| Electric connection | 230 V – 16 A |
| Water connection | 3/4“+filter+reduction valve |
| Effluent connection | 2,5“ or 1" |
| 2 Persons | Yes |
| Toilet | Yes |
| Sink | Yes |
| Men/Women WC | Yes |
| Battery | Yes |
| Solar panel | Yes |
| Inside height | 2100mm |
| Length of drawbar | ~1800mm |
