Mobile trailers - Production

Type 4505-89-3

External length: 8900 mm
External width: 2500 mm
Total height: ~3000 mm

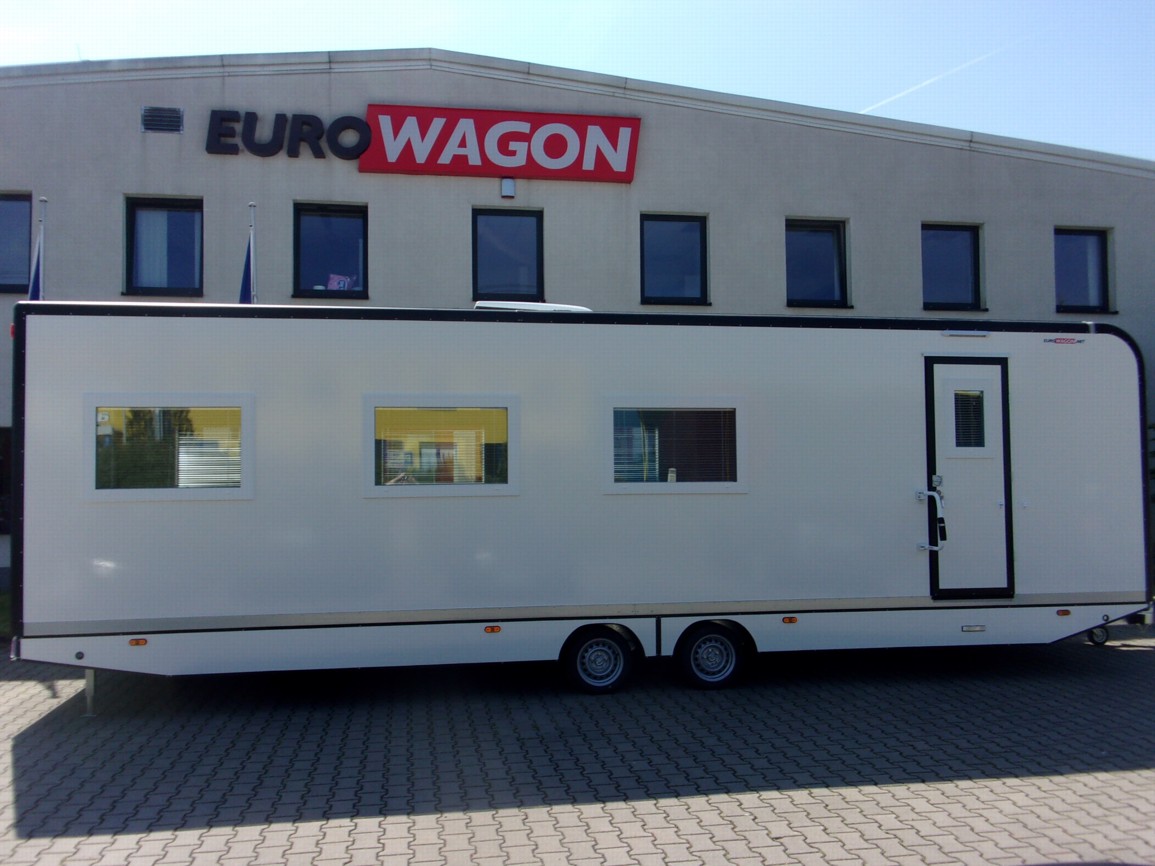

    • Mobile office type 4505-89-3
    •         base for film crew
    •         roof solar system
    •         battery Banner (230 Ah-12 V) as independent source of energy for spot lights, exterior lights, voltage inverter (1000W)
    •         el. connection 400 V - 32 A

Total weight3500 Kg
Tare weight~2600 Kg
Number of axels2
Wheels195/50 R13C
Braked trailerYes
Chassisgalvanized, support wheel, 4 pcs support legs
Floorsandwich panel 60 mm + PVC linoleum 2 mm (both sided galvanized sheet metal)
Wallsandwich panel 50 mm (both sided glass fibre 1,5 mm)
Roofsandwich 60 mm (both sided glass fibre 1,5 mm)
Electric connection400 V – 32 A
Inside height2200mm
Length of drawbar1300mm

Contact us

Type 4505-89-3, Mobile trailers, Production, 9327.jpg
Type 4505-89-3, Mobile trailers, Production, 9328.jpgType 4505-89-3, Mobile trailers, Production, 9329.jpgType 4505-89-3, Mobile trailers, Production, 9330.jpgType 4505-89-3, Mobile trailers, Production, 9331.jpg

Technical drawings and 3D visualization

pdfPlan
pdf3D visualization
